Heavy-Duty Parts Machined In House
Explore Featured Pump Parts
Browse our selection of high-quality vacuum pump parts for easy ordering. To ask about any parts not pictured, contact us directly.
Stokes 412H-11 / J-14 Main Shaft Assembly uses Standard Keyways
4150 Chrome Moly Steel
Heat Treated RC 28-32
Includes (2) N-10 Bearing Nuts
OEM Part #: 262-992-005
SF-1001
Stokes 212H-11 / 412H-11 Rectangular Shaft Key
0.437 x 0.452 x 5”
4150 Heat Treated Alloy 28-32 Rc
OEM Part #: 408-324-005
KY-1000
Stokes 146H-13 Hinge Bar with Fixture Holes
Heat Treated 4150 to Rc 28-32
Ground on all Surfaces
Requires Hinge Bar Bore and Tang Thickness with Order
OEM Part #: 2676-314-008
HB-146
Stokes 148H-10 Hinge Bar with Fixture Holes
Heat Treated 4150 to Rc 28-32
Ground on all Surfaces
Requires Hinge Bar Bore and Tang Thickness with Order
OEM Part #: 254-688-007
HB-1040
Stokes 149H-11 Hinge Bar with Fixture Holes
Heat Treated 4150 to Rc 28-32
Ground on all Surfaces
Requires Hinge Bar Bore and Tang Thickness with Order
HB-1022
Stokes 615 Blower Mechanical Seal Oil Slinger
Mild Steel Weldment
OEM Part #: 605-510-001
SK-0152
Stokes 306 / 310 Blower Mechanical Seal Oil Slinger
Mild Steel Weldment
SK-0245
Stokes 212 / 412 / MHV SD300 / HD300 / HS430 Poppet Valve Assembly
Gasket Included
OEM Part #: 607-417-001
SK-0283
Stokes 615 / 1722 Steel Belt Guard Assembly
Expanded Metal Front
Powder Coated Steel
SK-0252
Stokes 212 / 412 Universal End Plate
*REQUIRES PUMP MODEL FOR PROPER ORIFICE SELECTION
Includes SAE O-Ring Ports with Fittings
Class 40 Grey Iron sourced from Michigan foundry
OEM Part #: (Drive End: 262-508-021) (Dead End: 262-508-020)
SK-0199
Stokes 212 / 412 Light Eccentric
Class 40 Grey Iron
Brass Core Hole Plugs
OEM Part #: 278-575-001
SK-0146
Stokes 212 / 412 / MHV 430 Piston Slide
Class 40 Grey Iron - Stress relieved prior to machining
OEM Part #: 243-595-011
SK-0144-2
Stokes 212H-11 / 412H11 Mechanical Seal
Includes Viton O-Rings for Seals and Seal Cap
Includes Seal Carrier End Casting
OEM Part #: 085-029-600 / 085-038-766
MES-1000E

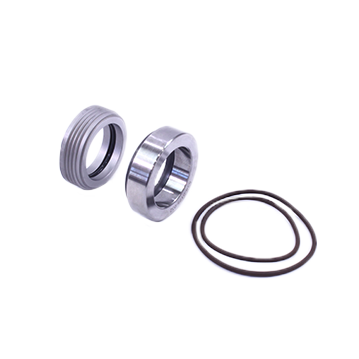

Stokes 607 / 615 / 622 Blower Mechanical Seal
Includes Viton O Rings
OEM Part #: 539-0175-032
MES-M

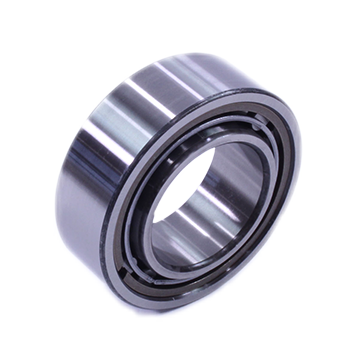

Stokes 607 / 615 Blower Roller Bearing
OEM Part #: 085-052-055
BRG-064
Stokes 615 / 622 & 212 / 412 5210C3 Main Shaft Bearing
Open-Non-Filling Slot Steel Retainer
OEM Part #: 085-014-263
BRG-020ALT2
Stokes 412H-11 / J-14 Main Shaft Assembly Long Keyways Version
4150 Chrome Moly Steel
Heat Treated RC 28-32
Includes (2) N-10 Bearing Nuts
9” Keyways
OEM Part #: 262-992-005
SF-1001-9
Stokes 146H-13 Main Shaft Assembly
4150 Chrome Moly Steel
Heat Treated RC 28-32
Woodruff Keyways
OEM Part #: 267-318-007
SF-1024
Kinney KDH 150 Main Shaft
4150 Chrome Moly Steel
Heat Treated RC 28-32
Woodruff Keyways
SF-1022
Stokes 148H-10 Main Shaft
4150 Chrome Moly Steel
Heat Treated RC 28-32
Woodruff Keyways
OEM Part #: 254-617-005
SF-1021
Kinney KT500 / 840 Main Shaft Assembly
4150 Chrome Moly Steel
Heat Treated RC 28-32
Includes (1) N-10 Bearing Nuts
Rectangular Keyways
OEM Part #: 808631-B000
SF-1018
Stokes 149H-11 Main Shaft Assembly
4150 Chrome Moly Steel
Heat Treated RC 28-32
Includes (2) N-7 Bearing Nuts
OEM Part #: 263-211-002
SF-1006
Stokes 212H-11 / 212J-14 Main Shaft Assembly
4150 Chrome Moly Steel
Heat Treated RC 28-32
Includes (2) N-10 Bearing Nuts
OEM Part #: 252-616-012
SF-1004
Stokes 212J Minor Rebuild Kit
Stokes 412J Minor Rebuild Kit
Precision-Machined Parts by MHV
When you’re looking for longterm performance, controlling the quality of your parts is critical. That’s why we manufacture parts in house. We use heavy-duty materials and exact tolerances specific to each pump and blower, because experience proves each process is unique and every component wears differently. We strive for better-than-OEM part performance, because it’s just the right way to do it.
Machined in our dedicated U.S. facility
Heat-treated for extended durability
Designed for high-vacuum applications
Vacuum Pump Parts FAQs
From Aerzen Blowers to Welch pumps, and everything in between. Visit Brands We Carry to view the full listing of pump brans.
Our inventory includes hinge bars for stokes 412, 212, and 146/148, stokes pumps in oversizes up to 5/8 inch over the standard 3.5 inch hinge bar bore.
These are all machined from SAE/ AISI 4150 chrome alloy steel heat treated to Rockwell 28-32. We offer Stokes 412 hinge bar spacers to match oversized hinge bars.
We have complete CNC turning and milling along with conventional OD, ID, and surface grinding.
Give us a part number, photo, or description. With MHV's 40+ years experience being only a call or click away; we'll make sure you're getting the right part. It's our commitment to you.
Many aftermarket parts do not use heat treated alloy steel; parts with only a mild steel composition, especially in the case of main shafts, can shear with disastrous consequences. At MHV we test for hardness and foundry alloy composition; it’s standard practice because it’s best practice, and that’s all we do.
We can provide pre-packaged parts for clapper and poppet valves including gaskets for Stokes 146, 148, 149, 212, 412J & H, and 912 vacuum pumps.
